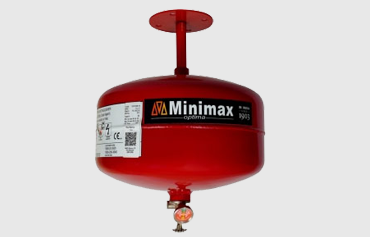

Clean Agent Ceiling Mounted Fire Extinguisher

A clean agent ceiling mounted fire extinguisher is a specialized fire suppression system that employs clean agents such as gaseous substances to extinguish fires without causing damage to sensitive equipment. Clean agents are typically non conductive gases designed to restrain fire by reducing the oxygen concentration and cooling the flames. Clean agents are particularly effective for fire related with combustible materials like wood, paper, cloth and plastics, For fires related with flammable liquids and gases including oil, gasoline and paint as well as against fire related to electrical equipment.

These extinguishers are commonly installed in areas where traditional fire suppression methods like water or dry powder are unsuitable due to potential equipment damage. Clean agent fire extinguishers are strategically positioned on the ceiling to provide optimal coverage in case of a fire event. In case of these type of extinguishers, activation is usually automatic, it gets triggered by a fire detection system that senses the presence of a fire.

Clean agent systems are safe for use in occupied spaces because they are non toxic and do not reduce oxygen levels. Clean agent ceiling mounted fire extinguishers are a crucial component of fire protection in areas where sensitive equipment and assets require protection without the risk of damage.

Clean Agent Ceiling Mounted Fire Extinguisher

Clean Agent Ceiling Mounted Fire Extinguisher

Specifications 5 kg 6 kg 10 kg 12kg
Working Temperature °C -30 °C to + 60 °C
Cylinder Testing Pressure 35 bar for 30 sec.
Operating Pressure 8 bar
Bulb Temp. 68 °C Standard
Area Coverage 3 x 3 mtr.
Propellant Dry Nitrogen
Charge Grenoz® 1230 / FK 5-1-12
